Dado Laser Welder
0.2–1.5 mm adjustable spot size, 12 power settings, 10× microscope, compact 14 × 14 inch footprint
- Manufacture
- Elettrolaser, Italy
- Model
- Daddo
- with Argon
- $6,000
- Without Argon
- $5,500
Buy Now
Dado Laser Welder information

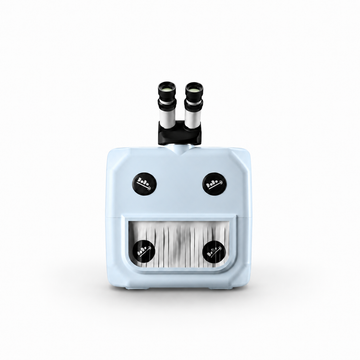

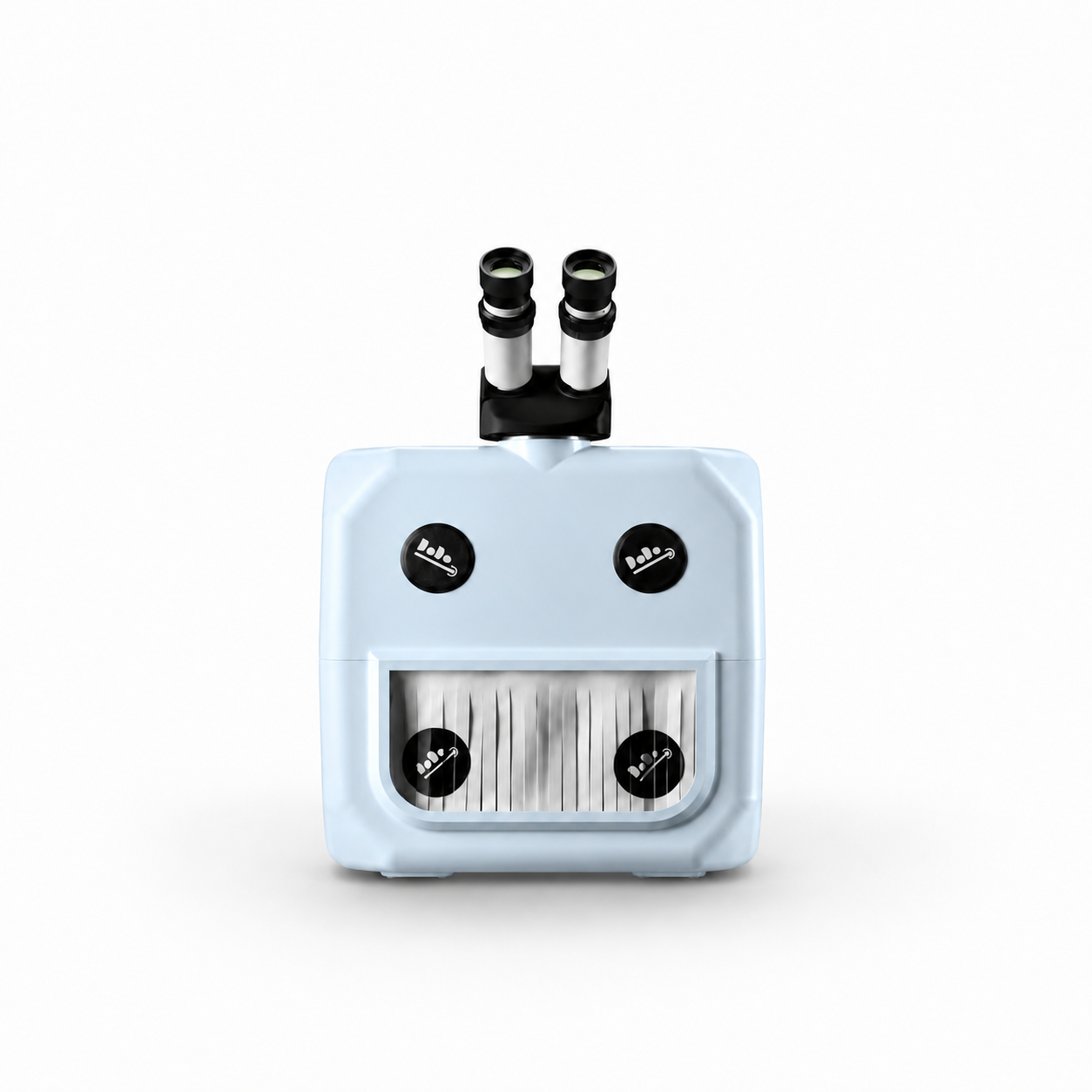

The DADO Laser Welder is a compact and affordable way to bring true laser welding into the orthodontic lab. Designed to deliver the precision of laser welding without the cost or complexity of a larger production system, the DADO is well suited for basic wire attachments, appliance repairs and everyday light welding applications.

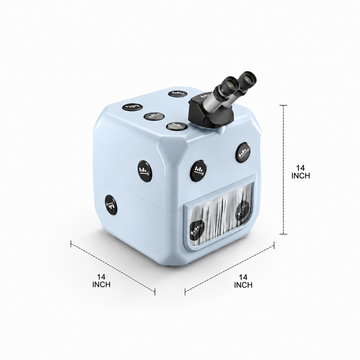

With a compact 14 × 14 inch footprint, 10× microscope, adjustable 0.2 to 1.5 mm spot size and 12 straightforward power settings, the DADO is designed to be easy to learn and easy to fit into almost any lab. Its water cooled system and simple controls give technicians the ability to place small, controlled welds exactly where they are needed.
IF YOU CAN SEE IT, YOU CAN WELD IT

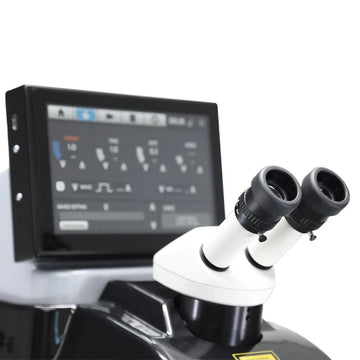

One of the biggest advantages of laser welding is access. If you can clearly position and see the joint through the optics or on the screen, the laser can place a small, controlled weld exactly where it is needed. This makes the LZR Select especially useful for small joints, attachments and tight areas that can be difficult to solder conventionally. You can also tack or fully weld components together directly on the 3D printed model, then remove the appliance and finish with traditional soldering if needed.
OPTIONAL ARGON SHIELDING
The DADO Laser Welder can be purchased with or without an argon shielding gas connection, allowing you to choose the setup that best fits your lab and budget. Adding argon shielding helps protect the weld area during the welding process and can produce cleaner, higher quality welds. If your lab plans to use the DADO regularly for orthodontic wire and appliance fabrication, the argon equipped version is worth considering.
Bottom line: For an orthodontic lab that wants the advantages of laser welding but does not need the additional power and advanced features of the Orion LZR series, the DADO provides an excellent starting point. It gives smaller labs or lower volume users an accessible way to move away from traditional soldering for many everyday applications while keeping the investment considerably lower than a full featured laser welding system. Sunstone itself positions the DADO as the more straightforward, no frills option compared with its more capable laser welders.
Call us for more details and we can help you compare the options. 865-418-6898
“The Sunstone laser welder has become an essential part of our lab. We use it on every wire appliance we can because when a joint is welded properly, it simply does not fail. It has become even more important as we move further into 3D printed models, where traditional soldering on resin or plastic is not practical. Being able to weld directly on or around these printed models makes a laser welder feel less like a luxury and more like a necessity. Broken solder joints and the emergency visits they create have become a thing of the past, which means fewer interruptions for the doctor and a better experience for the patient. If your lab does a lot of wire work or 3D printed model fabrication, a laser welder is a game changer.” OLP Lodi, CA
- Laser Source / Wavelength
- Nd:Ce:YAG 1064 nm
- Average Power
- 10 W laser average power
- Peak Power
- 2.5 kW
- Energy Range
- 1–15 J
- Impulse Time
- 0.1–6 ms
- Weld Rate / Frequency
- Up to 4 Hz / 4 welds per second
- Spot Diameter
- 0.2–1.5 mm, adjustable
- Spot Setting
- Manual
- Power Settings
- 12
- Optics
- 10× integrated microscope
- External Control
- Mobile app for smartphone or tablet
- Voice Assistant
- Built in voice assistant
- Laser Status Indicator
- Color changing chamber LED laser status indicator
- Cooling System
- Integrated liquid cooling, single 1 L system
- Argon
- Available with or without argon hookup
- Machine Type
- Compact benchtop / desktop
- Power Supply
- 110/230 V AC, 50/60 Hz
- Ampere Rating
- T16A
- Noise Level
- <70 dB(A)
- Dimensions / Footprint
- 13.4 × 13.4 × 13.4 in (34 × 34 × 34 cm)
- Weight
- 33.1 lb (15 kg)
- Operating Environment
- 17–35°C, max 65% RH, non-condensing

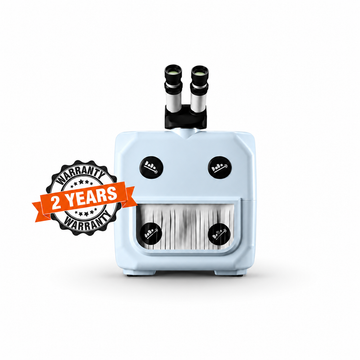

- Warranty
- 2 year manufacturer warranty
Do I get the same manufacturer warranty if I buy through OLS?
Yes. When you purchase equipment through Orthodontic Lab Solutions, the original manufacturer warranty remains in place. We work directly with the manufacturers and maintain relationships with the companies whose equipment we offer.
In many cases, we can also help act as a point of contact if a warranty or service issue comes up. Instead of being left to figure out who to call, we can help connect you with the appropriate manufacturer and assist with the process when possible.
Depending on the manufacturer and the equipment, extended warranty options may also be available through OLS. We can help you understand the available coverage before you purchase so you know exactly what is included.
You are buying the same equipment with the same manufacturer warranty, with the added benefit of having OLS in your corner before, during and after the sale.
Do laser welded joints break?
A properly prepared and properly welded joint should stay secure under normal use. Correct fit, clean metal, material selection, laser settings and technique all matter. A poor weld can fail, so proper setup and training are important.
Can you laser weld directly on a 3D printed model?
Yes, in many orthodontic workflows. The concentrated heat of the laser makes it possible to tack or weld an appliance while it is positioned on the 3D printed model. If additional soldering or finishing is needed, the appliance can then be removed from the model and completed off the model.
Is laser welding a selling point for an orthodontic lab?
It can be. Doctors appreciate knowing their appliances are being fabricated with modern welding technology instead of relying only on traditional soldering. Strong, consistent joints and fewer avoidable appliance repairs can be a meaningful quality advantage for a lab.
What warranty does this laser welder include?
Sunstone currently lists the DADO Laser Welder with a 2 year warranty. Always confirm the current warranty terms at the time of purchase.
Where is Sunstone located?
Sunstone Engineering is based in Spanish Fork, Utah.
What kind of maintenance does a laser welder require?
Maintenance is minimal. Sunstone recommends replacing the deionized cooling water once a year. The flashlamp is also a wear item and may eventually need replacement if its output begins to weaken. Sunstone offers a replacement flashlamp specifically for the DADO, but does not publish a specific shot-life rating for it.

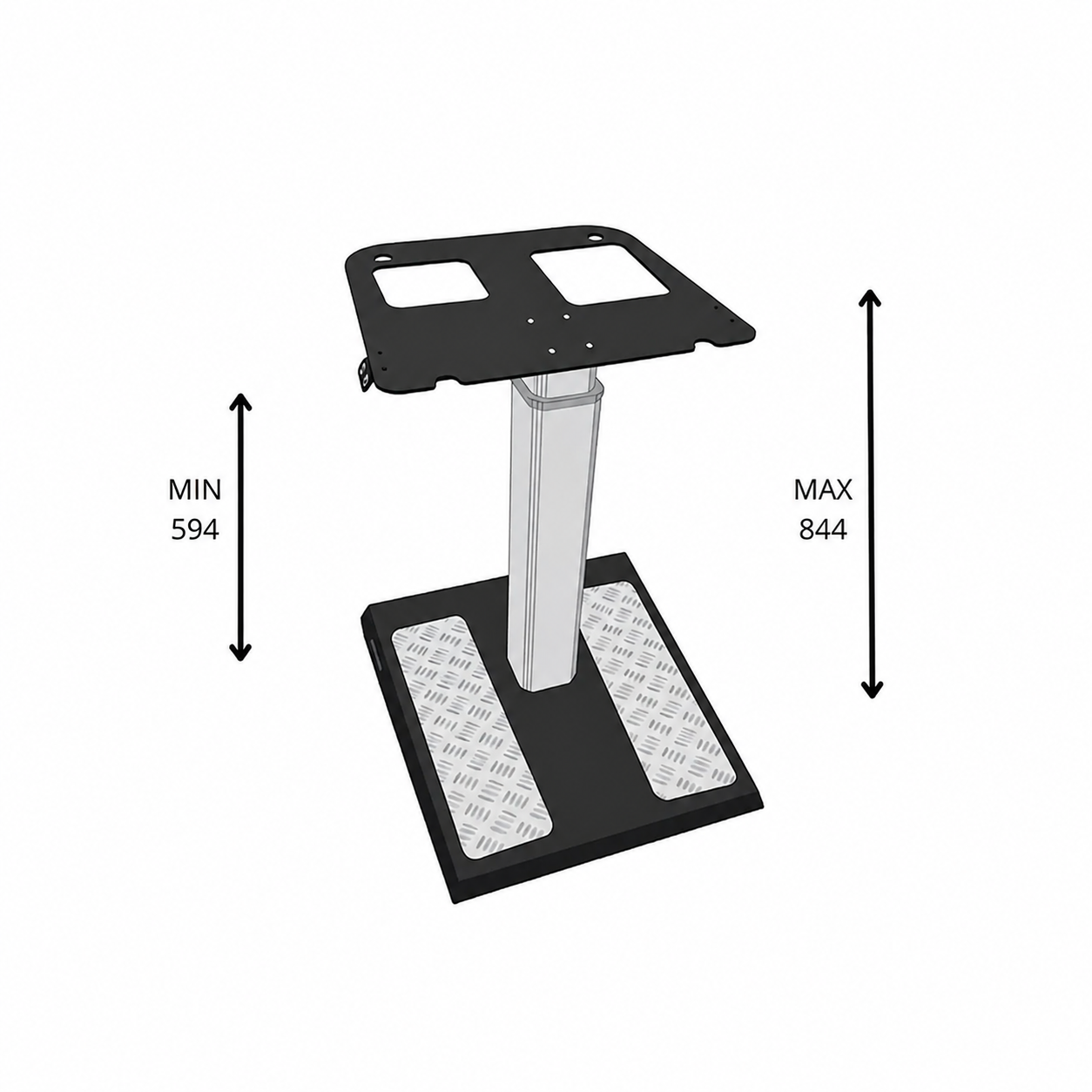

Does the DADO need a floor pedestal?
No. The DADO is designed as a compact benchtop laser welder, so it can sit directly on a suitable workbench or counter.
Does Orthodontic Lab Pros own a laser welder?
Yes. Orthodontic Lab Pros has owned and used a Sunstone LZR laser welder for over six years. We use it every day on our wire appliances because we trust the strength and reliability of the welded joints it produces. It has become one of the most valuable assets in our lab and an important part of our daily production. Our doctors appreciate knowing their appliances are being delivered with strong, reliable welded joints that are far less likely to fail. That means fewer emergency repairs, less chair time dealing with broken appliances and a better overall experience for the patient.
